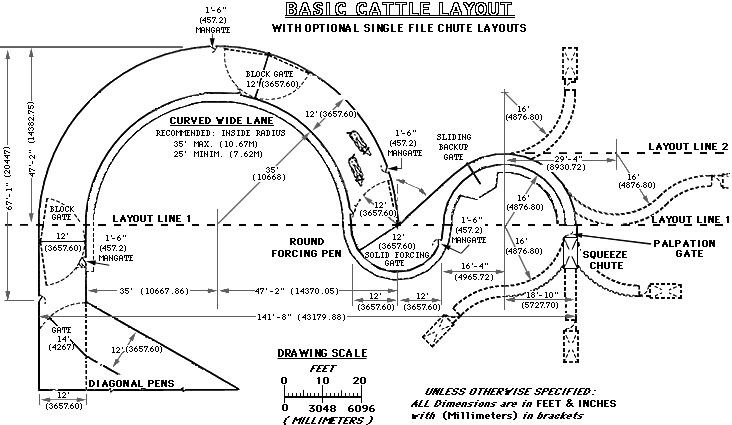

Basic Cattle Layout

(with optional single file chute layouts)

Curved systems work more efficiently. This drawing shows different curved chute layout options. This design can be used on ranches, properties, feedlots and slaughter plants.

NOTE: All fencing on Forcing Pen, Curved Wide Lane and Single File Chutes are solid.

All gates in Forcing Pen are solid.
